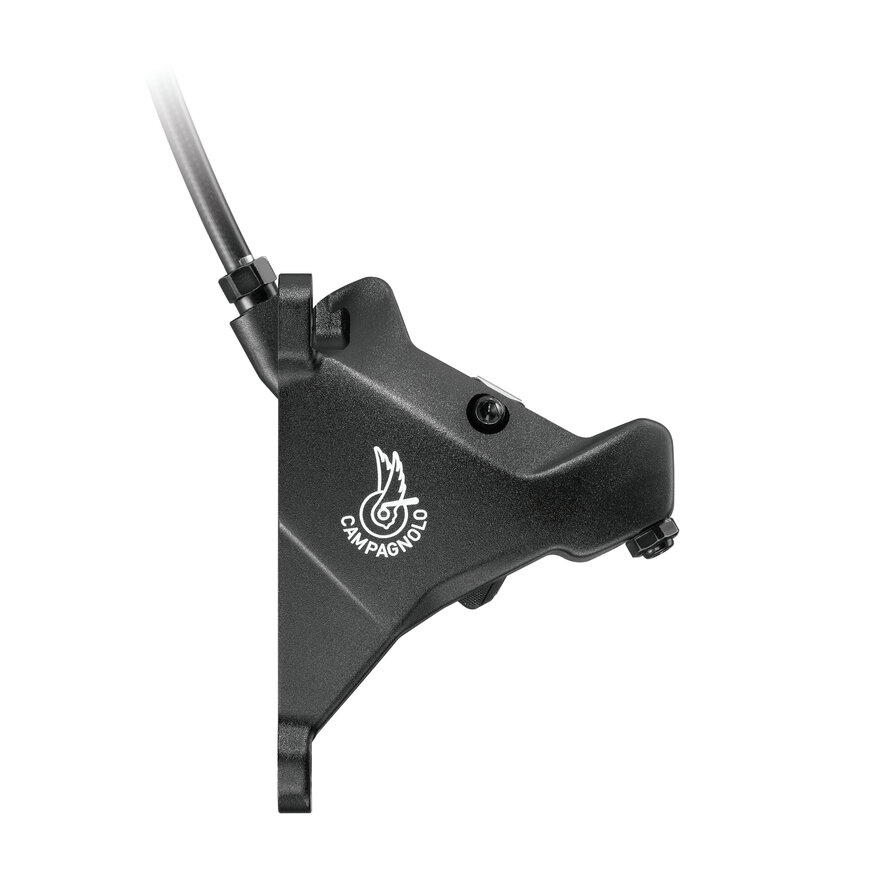

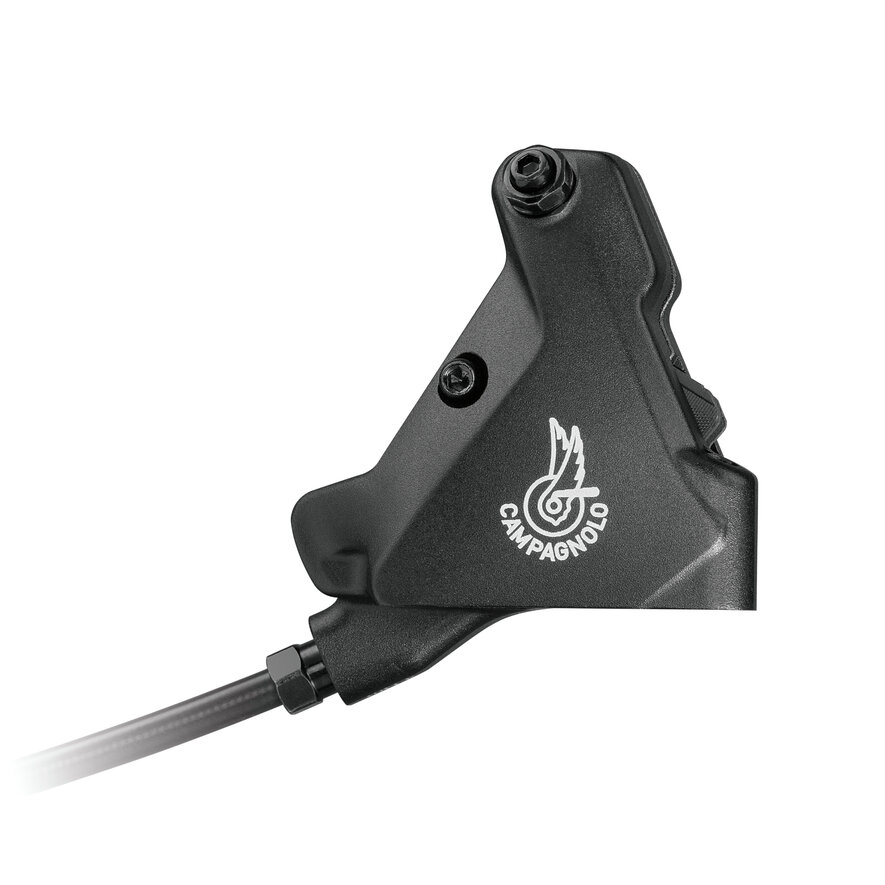

Caliper Campagnolo

The flat-mount Campagnolo brake calipers ensure powerful, modular braking in any situation owing to pistons measuring 22 millimetres in diameter. The pad return is now optimised to ensure that there is no friction when the brake lever is released. A special metal plate positioned between the pad and the caliper piston, cushions the vibrations during braking. The different Campagnolo brake calipers were designed to be mounted together with the disc chosen by the rider and to always guarantee the highest level of performance. It is indeed possible to choose the brake caliper with a disc measuring either 140 mm (limited to cyclists weighing no more than 82 kg) or 160 mm in diameter. Careful attention was given to making maintenance and assembly operations easy: the pads have wear indicators and replacing them is facilitated by the absence of physical return springs. Additionally, work was done on the insertion of the disc in the caliper to make changing the wheel easier and faster.

Standard Flat Mount Fully compatible with flat-mount frames. 22 mm pistons in phenolic resin Braking force and thermal isolation. Piston-calliper connector The return action of the pistons is now optimised, rapidly returning the pads to their position and thus ensuring an overall clearance between pad and disc of 0.4-0.8 mm, with no risk of accidental contact. Interchangeable spare parts: pads, cylinder, screws, bolts (same for all callipers) Fully compatible and optimised spare parts, making maintenance practical and reducing the number of components to keep on hand in the warehouse. Wear indicator It is very easy to see when the pads need to be replaced. Rounded brake pads These facilitate disc insertion and speed up wheel changing. Anti-vibration plate Optimal braking without vibrations. Two fixing screws Rapid installation and maintenance.
